Element-wise Operations

Invert Image

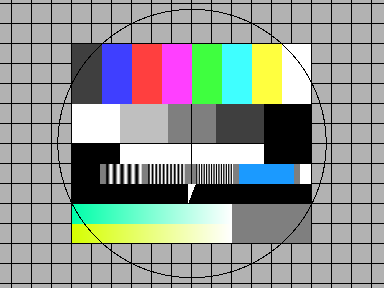

Greyscale as well as colour images can be inverted. This example shows how to do this.

require 'hornetseye_rmagick'
require 'hornetseye_xorg'
include Hornetseye
img = MultiArray.load_ubytergb 'http://www.wedesoft.de/hornetseye-api/images/colour.png'
( 255 - img ).show

Thresholding

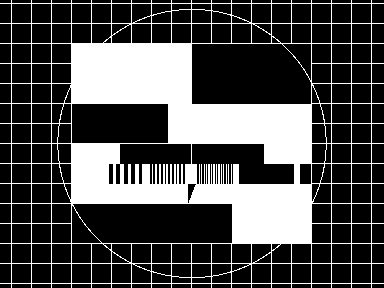

This example shows how to apply a threshold to an image. Since the result is a boolean image, it needs to be converted using the conditional function before it can be displayed.

require 'hornetseye_rmagick'
require 'hornetseye_xorg'
include Hornetseye
img = MultiArray.load_ubyte 'http://www.wedesoft.de/hornetseye-api/images/grey.png'
binary = img >= 128
binary.conditional( 255, 0 ).show

Gamma correction

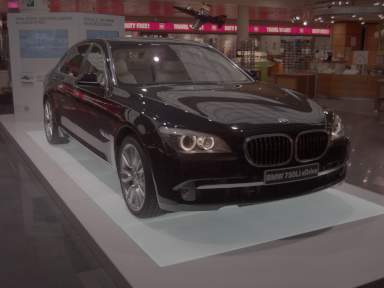

One can do gamma correction by applying an exponential function to each pixel.

require 'hornetseye_openexr'
require 'hornetseye_xorg'
include Hornetseye
system 'wget -c http://www.wedesoft.de/hornetseye-api/images/bmw.exr'
img = MultiArray.load_sfloatrgb 'bmw.exr'
( img ** 0.03 ).normalise.show

Adjusting Brightness and Contrast

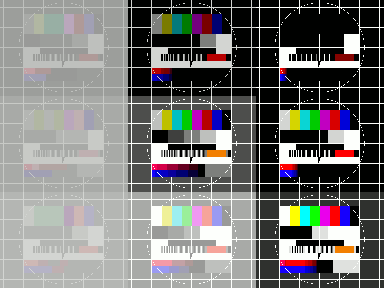

Changing the brightness and/or contrast of an image simply means applying a gain and an offset to the image. The values need to be clamped before they can be displayed.

require 'hornetseye_rmagick'
require 'hornetseye_xorg'
include Hornetseye
N = 3
img = MultiArray.load_ubytergb 'http://www.wedesoft.de/hornetseye-api/images/colour.png'
w, h = *img.shape
thumb = (img.downsample(N, N) / 255.0) ** 2.2
result = MultiArray.ubytergb *thumb.shape.collect { |d| d * N }
for y in 0 ... N
  for x in 0 ... N
    brightness = 2 * (y + 0.5) / N - 1.0
    contrast = 2 * (x + 0.5) / N - 1.0
    factor = (contrast + 1.0) / (1.0 - contrast)
    offset = 0.5 * (1.0 + (brightness -1.0) * factor)
    sample = thumb * factor + offset
    result[w / N * x ... w / N * (x + 1),
           h / N * y ... h / N * (y + 1)] = (255 * sample ** (1 / 2.2)).clip
  end
end
result.show

Element-wise Logarithm

The element-wise logarithm can be used to display images with a large contrast range.

require 'hornetseye_openexr'
require 'hornetseye_xorg'
include Hornetseye
system 'wget -c http://www.wedesoft.de/hornetseye-api/images/bmw.exr'
img = MultiArray.load_sfloat 'bmw.exr'
Math.log(img + 0.1).normalise.show

Pseudo Colours

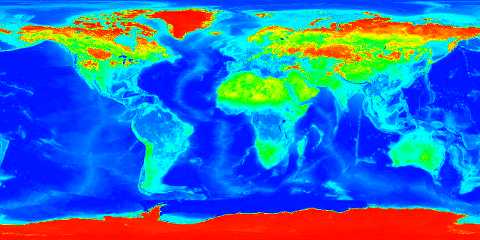

You can create pseudo-colour images in real-time. The example program loads a single greyscale image and converts it to pseudo colour. Pseudo colour are often used to display IR images.

require 'hornetseye_rmagick'
require 'hornetseye_xorg'
include Hornetseye
class Numeric
  def clip( range )
    [ [ self, range.begin ].max, range.end ].min
  end
end
colours = Sequence.ubytergb 256
for i in 0...256
  hue = 240 - i * 240.0 / 256.0
  colours[i] =
    RGB( ( ( hue - 180 ).abs -  60 ).clip( 0...60 ) * 0xFF / 60.0,
         ( 120 - ( hue - 120 ).abs ).clip( 0...60 ) * 0xFF / 60.0,
         ( 120 - ( hue - 240 ).abs ).clip( 0...60 ) * 0xFF / 60.0 )
end
img = MultiArray.load_ubyte 'http://www.wedesoft.de/hornetseye-api/images/world.jpg'
img.lut( colours ).show
