Interactive Ruby Shell
Starting IRB
You can develop machine vision algorithms using the Interactive Ruby Shell. Simply start the shell like this:
irb
You can put frequently used command into the file $HOME/.irbrc. It is useful to load Ruby Gems, IRB command line completion, and syntax highlighting (see FAQ for more information on wirble).
require 'irb/completion'
require 'wirble'
Wirble.init( { :skip_prompt => true } )
Wirble.colorize
Example Session
Here is a small example session. The comments (lines preceded with ‘#’) show the textual output returned by each command. The textual output can be useful for understanding the effect each operation has on the image.
# false
require 'multiarray'
# true
require 'hornetseye_xorg'
# true
include Hornetseye
# Object
m = MultiArray.new( UBYTERGB, 640, 480 ).fill! 0
# MultiArray(UBYTERGB,640,480):
# [ [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# ....
m[ 100 ... 200, 100 ... 200 ] = RGB( 255, 0, 0 )
# RGB(255,0,0)
m[ 440 ... 540, 100 ... 200 ] = RGB( 0, 255, 0 )
# RGB(0,255,0)
m[ 100 ... 200, 280 ... 380 ] = RGB( 0, 0, 255 )
# RGB(0,0,255)
box = [ 150 ... 490, 150 ... 330 ]
# [150....490, 150....330]
m[ *box ] = 255 - m[ *box ]
# [150....490, 150....330, MultiArray(UBYTERGB,340,180):
# [ [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# [ RGB(0,255,255), RGB(0,255,255), RGB(0,255,255), .... ],
# ....]
m[ 128 ... 384, 400 ... 420 ].r = lazy( 256, 20 ) { |i,j| i }
# MultiArray(INT,256,20):
# [ [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# ....
m[ 128 ... 384, 420 ... 440 ].g = lazy( 256, 20 ) { |i,j| i }
# MultiArray(INT,256,20):
# [ [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# ....
m[ 128 ... 384, 440 ... 460 ].b = lazy( 256, 20 ) { |i,j| i }
# MultiArray(INT,256,20):
# [ [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, .... ],
# ....

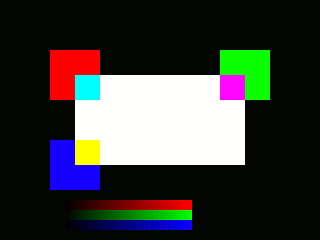

m.show
# MultiArray(UBYTERGB,640,480):
# [ [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# [ RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), RGB(0,0,0), .... ],
# ....
